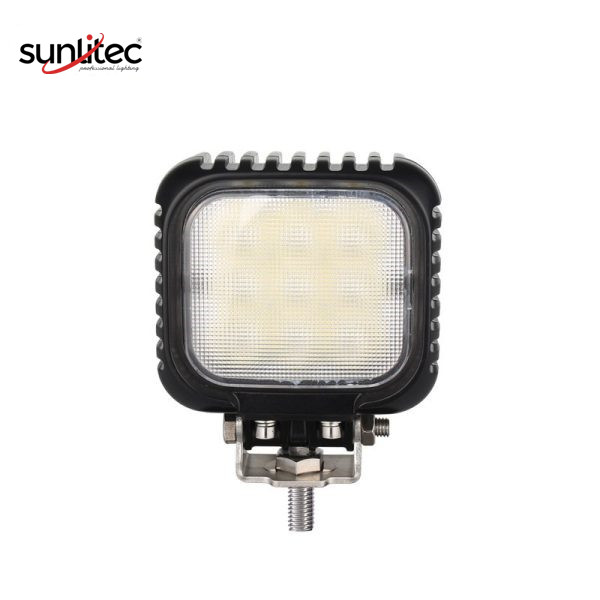

4″ 45W Square Led Flood work Lamp
4″ 45W Square Led Flood work Lamp
1. 9PCS*5W German Osram led, Color temperature 5700 Kelvin
2. Light output 7380lm Lumen, power consumption 31Watt
3. Flood beam 1lux@69meters, wide close illumination
4. Durable mounting bracket system
5. ECE-R10, CISPR23 C3, IP68 approval
4″ 45W Square Led Flood work Lamp
Product Introduction
Our SLL14129 4inch square led work light, adopts 9PCS*5W German Osram S8, real power can reach 31W, emits 7380lm of crystal white illumination within a small 4inch size, create a powerful and delicate flood round beam pattern.Compact whole design, built with UV resistant imported PC lens, semi-glossy black power coated aluminum die-cast heat-sink, improved cable sealing hole design, durable mounting system including rubber gasket, aluminum bracket and 304 stainless steel U shape bracket, supporting 360°versatile upright or pendant mounting, bracket width 42mm. This led work light is IP68 and Emark R10 approved.

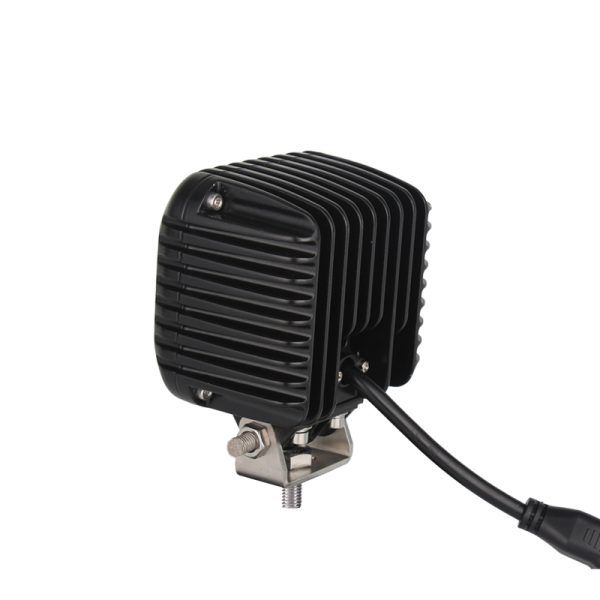

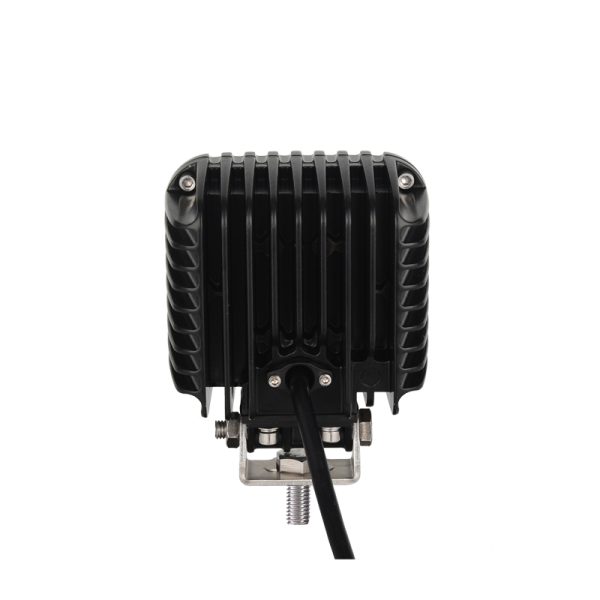

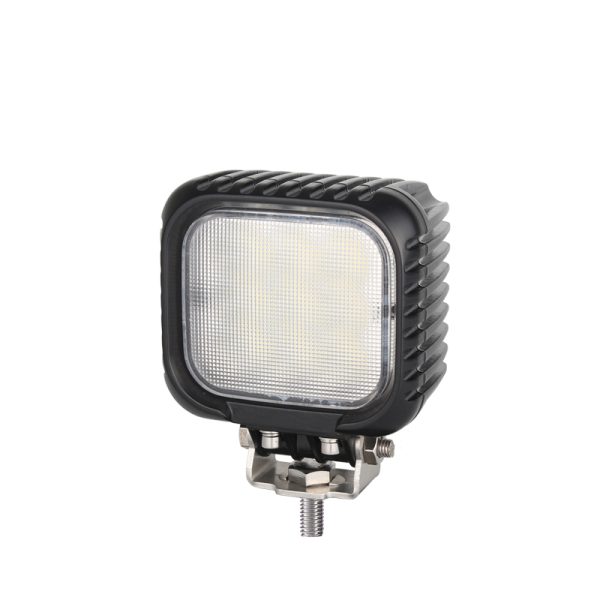

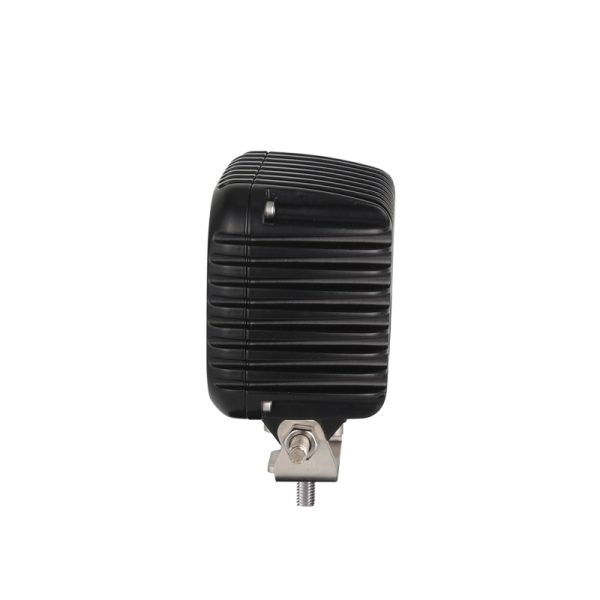

Detail Display
Technical Specification
| Ginto Part No. | SLL14129 | Mounting Bracket | Bottom Mount |
| Max Power | 45W | Bracket Material | 304# Stainless Steel |
| Leds | 9Pcs*5W Osram | Lens Material | Anti-scratched PC Lens |
| Color Temperature | 5700K | Housing Material | 6063 Aluminum |
| AMP Draw | 2.6A@12V, 1.3A@24V | Housing Powder Coating | Semi-Gloss Black |
| Operating Voltage | 10-30V DC | Shape | Square |
| Operating Temperature | -40~+60℃ | Standard Electrical Connection | Bare Wire (Deutsch Connector Available) |
| Lifetime | +50,000 hours | Standard Cable Length | 40CM |
| Beam Pattern | Flood Beam | Waterproof Rating | IP68 |
| 1 Lux Reading | Flood: 69meters | EMC Protection | YES |
| Theoretical Lumen(lm) | 7380lm | Certification | CE, RoHs, EMC, ECE R10, IP68 |
| Effective Lumen(lm) | 6500lm | Net Weight | 0.6 KGS/SET |
| Size(inch) | 4.01″*3.61″*2.67″ | Package Standard | 20 SETS/CTN |
|
Size(mm) |
101*92.5*68 |
Carton Size | 38.5 x 26 x 31.5cm |
Dimensional Drawing
Isolux Chart
Flood Beam: 1lux@69meters
Night Test on the Road
